ATRAC and rear locker not engaging now. Any ideas?
Howtos, reviews, and gear questions
Go to page 1, 2  Next
Post new topic   Reply to topic     |##| -> |=|      Forum Index4x4 Tech
View previous topic :: View next topic
Author Message
quicksilverfj
AZ Pinstriped
AZ Pinstriped


Joined: Mar 14, 2009
Posts: 262
Location: Chandler AZ

PostPosted: Sat Dec 12, 2009 9:49 pm    Post subject: ATRAC and rear locker not engaging now. Any ideas? Reply with quote

I did a search but couldn't find any reference to this. SO homedad and Belly doc I'm hoping you might have seen this, or anyone for that matter.

ATRAC and the rear diff will not engage today. They worked last time out a few weeks ago and now today neither will work. I checked for a blown fuse but couldn't locate any labeled for ATRAC, did find one with DIFF on it but it was functional.
I tired numerous times taking it in and out of 4L, letting it roll slowly, then a little faster, then just sitting in the driveway and nothing. The red diff indicator just keeps blinking.

Any ideas or is this something the dealer is gonna need to waranty?

_________________
Never fly the "A" model of anything!
Back to top
View user's profile Send private message Photo Gallery
fjlarry
Obstacle Crusher
Obstacle Crusher


Joined: Jan 08, 2008
Posts: 1820
Location: Glendale

PostPosted: Sat Dec 12, 2009 9:53 pm    Post subject: Re: ATRAC and rear locker not engaging now. Any ideas? Reply with quote

If it was only the rear diff not locking I would say you need to engage it in dirt or gravel. The locker doesn't like to engage on a hard surface usually. But since your A-trac light doesn't come on I would say it might be a switch by or around the transfer case lever. Anyone else???

_________________
2007 FJ, ARB bumper, Warn M8000, MAF skids and sliders, Icon ext/TC uca's, Sonoran Steel lower links, Odyssey, TRD exhaust, ARB 1/2 rack, LED domes, 17"Black Gatlins with 285/70/17 Hankook muds
Butterscotch butts drive me nuts
Back to top
View user's profile Send private message Photo Gallery
Homedad
Master Wheeler
Master Wheeler


Joined: Nov 29, 2007
Posts: 9272

PostPosted: Sat Dec 12, 2009 10:02 pm    Post subject: Re: ATRAC and rear locker not engaging now. Any ideas? Reply with quote

Free fix....call dealer....
Back to top
View user's profile Send private message Photo Gallery
quicksilverfj
AZ Pinstriped
AZ Pinstriped


Joined: Mar 14, 2009
Posts: 262
Location: Chandler AZ

PostPosted: Sat Dec 12, 2009 10:07 pm    Post subject: Re: ATRAC and rear locker not engaging now. Any ideas? Reply with quote

I was actually in snow when I noticed it. Then I played with it when I got home. Thinking I'll be at the dealer next week. But I do appreciate any input. Thanks.

_________________
Never fly the "A" model of anything!
Back to top
View user's profile Send private message Photo Gallery
Homedad
Master Wheeler
Master Wheeler


Joined: Nov 29, 2007
Posts: 9272

PostPosted: Sat Dec 12, 2009 10:16 pm    Post subject: Re: ATRAC and rear locker not engaging now. Any ideas? Reply with quote

What kills A-Trac/Rear diff???

1. 4wd module is bad
2. any wheel sensors bad
3.tranfer case gear sensor bad
4. rear diff lock wiring bad
5. steering wheel center setting or sensor bad
6. ECU bad
7. ANY connection along the way bad
8. sensor on Master cylinder bad
9. front wheel bearings bad(i dont know why...it just is)
10. not fully engaged in 4lo


This is a partial list.....hence the dealer recommendation...
Back to top
View user's profile Send private message Photo Gallery
nimrag
Obstacle Crusher
Obstacle Crusher


Joined: Nov 30, 2007
Posts: 2356
Location: middle of PHX

PostPosted: Sun Dec 13, 2009 1:46 am    Post subject: Re: ATRAC and rear locker not engaging now. Any ideas? Reply with quote

It happened to me once. My a trac light would not come on, but by the feel , I could tell it was working! I was going to take it to the dealer, but the next time I turned it on, the light was on!
Back to top
View user's profile Send private message Photo Gallery
Tomz1stToy
AZ Pinstriped
AZ Pinstriped


Joined: Feb 28, 2008
Posts: 230
Location: Sierra Vista, AZ

PostPosted: Fri Dec 18, 2009 4:57 pm    Post subject: Re: ATRAC and rear locker not engaging now. Any ideas? Reply with quote

Yep...my sensor/switch went south on mine a couple months back (probably from lack of use). It took about 4 hours to diagnose, ordered a new one and a week later installed it. The install labor was about 3 hours. Gotta love the warranty.

_________________
Silver, 6MT, Q-shifter w/knob, BFG AT's 285's, AVIC-D3X w/b-up cam, BajaRack, Expo bump w/S-winch & PIAA & Lightforce, CB/bandi/firestk, OME Next:ViAir/more lights/RR bumper
Back to top
View user's profile Send private message
quicksilverfj
AZ Pinstriped
AZ Pinstriped


Joined: Mar 14, 2009
Posts: 262
Location: Chandler AZ

PostPosted: Sun Dec 20, 2009 12:03 am    Post subject: Re: ATRAC and rear locker not engaging now. Any ideas? Reply with quote

Well they didn't quite diagnose it all the way. After 4 hrs in the shop they tell me the switch is bad for the locker and its on order. OK, what about ATRAC. The service rep tells me it doesn't have ATRAC as there is no light for it!! The hell it doesn't, what's the switch for then???? and all the chattering it makes when the light is on??? I had to show them where the light on the dash is. They really didn't know much about the FJ systems which makes me wonder. Anyway, I'm off to work then San Diego all week for the holidays so I took it back today and re stated what it wasn't doing and said I'd like it fixed by the time I get back. I'm hoping a week is long enough. Hopefully I can get back on the trail soon, I've missed the Friday night runs!
At this rate, see you all next year by the time this is over.

_________________
Never fly the "A" model of anything!
Back to top
View user's profile Send private message Photo Gallery
Tomz1stToy
AZ Pinstriped
AZ Pinstriped


Joined: Feb 28, 2008
Posts: 230
Location: Sierra Vista, AZ

PostPosted: Wed Dec 23, 2009 11:54 am    Post subject: Re: ATRAC and rear locker not engaging now. Any ideas? Reply with quote

Here's a funny story...I took my son for a quick jaunt on he huachuca's last Sunday. My ATRAC light didn't turn on as I'm traversing a 20-30 degree slope. I wasn't sure I'd the ATRAC was working or not cause I seemed to keep getting good traction. At any rate, the light didn't come on so I knew I had something wrong. I took the girl to the dealership yesterday and the light worked. Go figure. It's certainly a watch item from here on though.

Cheers and Merry Christmas!
Back to top
View user's profile Send private message
BellyDoc
Baja Champ
Baja Champ


Joined: Dec 04, 2007
Posts: 3331

PostPosted: Wed Dec 23, 2009 8:23 pm    Post subject: Re: ATRAC and rear locker not engaging now. Any ideas? Reply with quote

If the diff lock light is blinking, then it's waiting for you to be properly engaged in 4-low. If you're engaged in 4-low, then it's just not sensing it correctly. There's a switch which the transfer case shifter rail contacts when you shift into 4-low, and for some reason, that circuit isn't closing. Either the switch is bad, or the wiring is bad.

The simplest way to check it is to unplug it and jump it with a small piece of metal at the plug. However, that's easier said than done. The switch is located on top of the transfer case, shoved up under the tranny hump in your floor.

There are two ways to get to the switch. One way is to lift the center console and work through the hole in the floor. The other is to come up from underneath. Neither are great. I typically go at it from both ways, but I prefer the top.

There are 3 switches on the transfer case. 2 are on the driver's side.

On the driver's side, the switch you're looking for (if I'm remembering correctly) is the one in the front. I'm pretty sure that's right.

The wiring includes about a 6" whip coming off the switch with a standard connector. The wiring harness plugs into it there. You need to unplug that and then jump the wires in the harness with anything that conducts.

If the 4-low light comes on correctly, then engage the diff lock button and see if it stays solid.

If so, the problem is the switch. People have written about these switches going bad, so that's my guess.

If it doesn't work, then there's discontinuity in the wiring somewhere farther up the line... which will be more difficult to trace.

If you get a crappy result from the dealership, you can do this test and serve them up the answer on a silver platter.
Back to top
View user's profile Send private message Photo Gallery
Tomz1stToy
AZ Pinstriped
AZ Pinstriped


Joined: Feb 28, 2008
Posts: 230
Location: Sierra Vista, AZ

PostPosted: Thu Dec 24, 2009 12:31 am    Post subject: Re: ATRAC and rear locker not engaging now. Any ideas? Reply with quote

Doc,

Thank you for the background information and knowledge Smile

I surmised the exact issue...an intermittent lack of continuity somewhere (around that exact switch you've so clearly described). I must say I hadn't thought if that method of interrogating the problem though.

Thanks for your insight on so many subjects and I look forward to meeting you next year!

Merry Christmas to All!

Tom
Back to top
View user's profile Send private message
BellyDoc
Baja Champ
Baja Champ


Joined: Dec 04, 2007
Posts: 3331

PostPosted: Thu Dec 24, 2009 12:35 am    Post subject: Re: ATRAC and rear locker not engaging now. Any ideas? Reply with quote

No prob.

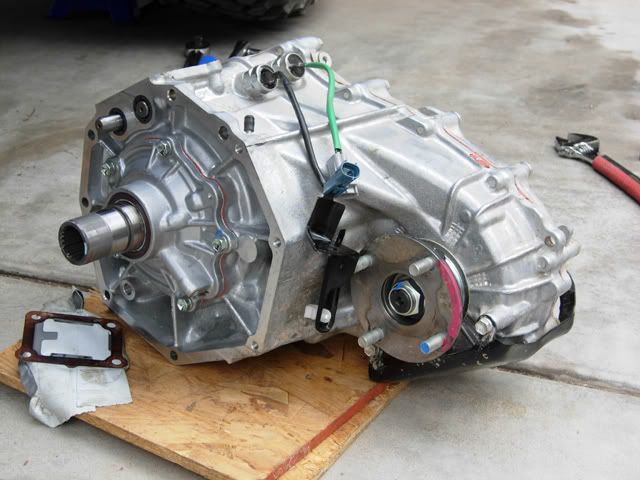

It's the black wire one in this photo:
